Quick Project Snapshot
Location: | Bawana A-Block New Delhi |
System Size: | 16.35 kWp |
Installed On: | August 27, 2024 |
Inverter Brand: | Growatt |
Panels Used: | Vikram Solar (Mono PERC) |
Type: | Commercial (Net Metered) |
Subsidy Received: | N/A |
Project Overview
- Location: Bawana A-Block New Delhi
- System Capacity: 16.35 kWp
- Date of Commissioning: 27 Aug 2023
- Solar Modules: Vikram Solar (Mono PERC) – High-efficiency panels with industry-leading warranties
- Inverter: Growatt – String inverter optimized for residential grid-tied applications
- Mounting Structure: Hot-dip galvanized MS structure with wind load compliance as per IS standards (Monorail Tin Shed Structure.
- Net Metering: Enabled, synchronized with Uttar Pradesh Power Corporation grid
- Expected Annual Generation: Approx. 19,800-20,887 kWh
- Estimated Carbon Offset: ~9.2 metric tons of CO₂ per year
Installation
Following comprehensive rooftop feasibility and load profiling, Exolar engineered a custom 16.35 kWp grid-tied system optimizing efficiency within local policy.
- Optimized module layout reducing shading using PVsyst.
- Balanced two-string configuration ensuring MPPT efficiency.
- Conforms to MNRE & UPNEDA standards; includes protection & earthing.
- Real-time monitoring system for performance and alerts.
Client Benefits
- Reduced grid dependency & significant bill savings.
- Expected 4.5-5 years payback post subsidy.
- Carbon offset equal to over 400 trees planted annually.
- 30-year panel & 7-year inverter warranty.
Conclusion
This project highlights Exolar’s commitment delivering reliable, economic, and environmentally sustainable solar solutions, serving as a model for Uttar Pradesh urban households.
Google
★★★★★
Thank you so much for the solar installation process. Delivered quality service & optimal system performance. Highly recommend.
Project Video

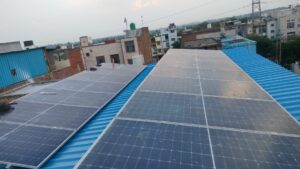

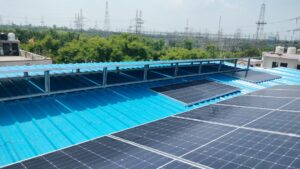

Project Images
