6.78 KWp Kaushambi , Ghaziabad Uttar Pradesh

6.78 kWp On-Grid Solar Power System – Kushambi, Ghaziabad, Uttar Pradesh

Quick Project Snapshot

Location: Kushambi, Ghaziabad, Uttar Pradesh
System Size: 6.78 kWp
Installed On: 26 May 2024
Inverter Brand: K-Solare
Panels Used: Vikram Solar
Type: Residential (Net Metered)
Subsidy Received: ₹1,08,000

Project Overview

Location: Kushambi, Ghaziabad, Uttar Pradesh
System Capacity: 6.78 kWp
Date of Commissioning: 26 May 2024
Solar Modules: Vikram Solar (Mono PERC) – High-efficiency panels with industry-leading warranties

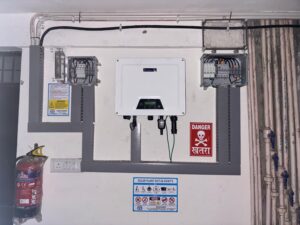

Inverter: K-Solare – String inverter optimized for residential grid-tied applications
Mounting Structure: Hot-dip galvanized MS structure with wind load compliance as per IS standards
Net Metering: Enabled, synchronized with the Uttar Pradesh Power Corporation Limited (UPPCL) grid
Subsidy Sanctioned: ₹1,08,000 under the state’s residential rooftop solar subsidy scheme
Expected Annual Generation: Approx. 9,800–10,200 kWh
Estimated Carbon Offset: ~9.2 metric tons of CO₂ per year

Technical Scope & Execution

Following a comprehensive rooftop feasibility analysis and load profiling, Exolar Energy engineered and implemented a custom-designed 6.78 kWp on-grid solar power system. The design focused on optimizing generation efficiency while conforming to local net metering policies and subsidy norms.

Key project highlights include:

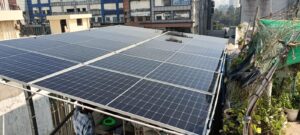

Module Layout Optimization: Panels were strategically placed to minimize shading losses and maximize peak sun-hour exposure using the PVsyst design tool.
String Configuration: Two strings configured for balanced load across the inverter, ensuring optimal MPPT performance.
Safety & Compliance: The system adheres to MNRE and UPNEDA standards, featuring AC and DC protection, earthing, and lightning arrestors for enhanced operational safety.
Monitoring: Integrated real-time monitoring system for performance tracking and maintenance alerts.

Client Benefits

Reduced Grid Dependency: Significant reduction in monthly electricity bills by offsetting daytime consumption with solar energy.
Return on Investment (ROI): Expected payback period of 4.5–5 years post subsidy.
Green Energy Adoption: Contributing to environmental sustainability with an annual CO₂ offset equivalent to planting over 400 trees.
System Longevity: 25-year performance warranty on panels and 5-year comprehensive warranty on inverter and BOS components.

Conclusion

This project exemplifies Exolar Energy’s commitment to delivering turnkey solar solutions that are technically sound, financially beneficial, and environmentally impactful. The Kushambi installation stands as a successful model for urban residential solar adoption in Uttar Pradesh.
