Quick Project Snapshot
| Location: | Aya Nagar, Delhi |
| System Size: | 5.45 kWp |
| Installed On: | August 27, 2025 |
| Inverter Brand: | K-Solare |
| Panels Used: | Vikram Solar (Mono Half Cut) |
| Type: | Residential (Net Metered) |
| Subsidy Received: | ₹ 78,000 |
Project Overview
- Location: Aya Nagar, Delhi, New Delhi
- System Capacity: 5.45 kWp
- Date of Commissioning: August 27, 2025
- Solar Modules: Vikram Solar (Mono Half Cut) – High-efficiency panels with industry-leading warranties
- Inverter: K-Solare – String inverter optimized for residential grid-tied applications

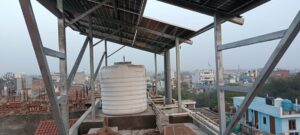

- Mounting Structure: Hot-dip galvanized Monorail Tin Shed structure with wind load compliance as per IS standards
- Net Metering: Enabled, synchronized with BSES Rajdhani Power Limited grid
- Subsidy Sanctioned: ₹ 78,000 under the state rooftop subsidy scheme
- Expected Annual Generation: Approx. 9,800-10,200 kWh
- Estimated Carbon Offset: ~9.2 metric tons of CO₂ per year
Installation
Following comprehensive rooftop feasibility and load profiling, Exolar engineered a custom 5.45 kWp grid-tied system optimizing efficiency within local policy.
- Optimized module layout reducing shading using PVsyst.
- Balanced two-string configuration ensuring MPPT efficiency.
- Conforms to MNRE & EERM standards; includes protection & earthing.
- Real-time monitoring system for performance and alerts.
Client Benefits
- Reduced grid dependency & significant bill savings.
- Expected 4.5-5 years payback post subsidy.
- Carbon offset equal to over 400 trees planted annually.
- 25-year panel & 5-year inverter warranty.
Conclusion
This project highlights Exolar’s commitment delivering reliable, economic, and environmentally sustainable solar solutions, serving as a model for Nwe Delhi urban households.
★★★★★
“The entire journey from shortlisting, ordering, installation and to commissioning was very pleasant. I wish Exolar team all the very best.”
Project Video

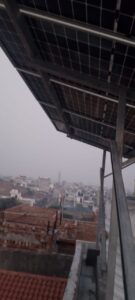

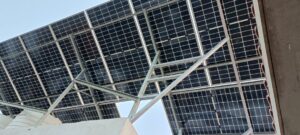

Project Images
